烟气的颜色

《柯克火灾调查(第八版)》译著内容系列转载

----专题十四


源自第8版《柯克火灾调查》2.9.9
本文主要解决了:

1) 可燃物燃烧产生什么颜色的烟气?为什么会有不同颜色的烟气?

2) 烟气颜色能反映哪些信息?通过烟气的颜色能够判断可燃物类型和火势发展吗?


敬请关注本期内容,欢迎转发转载!!!


■ F I R E

Observation of smoke may be helpful in obtaining an indication of the type of the fuel. Smoke color, especially colors other than the neutral white, gray, or black, may give indications of special types of fuel being combusted if they are present in large amounts. Smoke that has an unusual hue, such as red-brown or yellow, may indicate the presence of materials other than conventional building materials and furnishings.

观察烟气可能有助于了解可燃物的类型。烟气颜色,特别是有别于常见的白色、灰色或黑色以外的颜色,能表明有大量特定类型的可燃物参与燃烧。红棕色或黄色等特殊颜色的烟气则表明可能存在常规建材和家具以外的材料。


When complete combustion occurs, most materials produce little or no visible smoke. Under these ideal conditions, all carbon is burned to carbon dioxide, a colorless gas. Incomplete combustion of carbon leads to carbon monoxide, also colorless and odorless but having very toxic properties. Incomplete combustion of carbonaceous materials also produces various highly carbonaceous compounds that are opaque, such as soot, which is largely carbon.

当发生完全燃烧时,多数材料只产生少量的或不可见的烟。在这种理想条件下,所有的碳燃烧生成无色气体二氧化碳。碳的不完全燃烧会产生一氧化碳,也是无色无味的,但具有很强的毒性。含碳物质的不完全燃烧还会产生各种不透明的含碳量高的化合物,如主要成分是碳的烟炱。


Hydrogen, present in all organic materials, burns to water vapor, a major constituent of all combustion gases. It does not contribute to the smoke characteristics, although it may at times be recognized as steam. Other elements often present in organic materials, such as nitrogen, sulfur, and halogens, contribute gases to the combustion products. However, only under very special conditions do these alter the color of the smoke. They may contribute strongly to its odor when present in larger-than-ordinary amounts. Such effects may be encountered in industrial fires but rarely in residential ones.

所有有机材料中都含有氢,氢燃烧产生的水蒸气是燃烧产物的主要成分之一。有时认为产物是蒸汽(vapor,物质的气态形式;steam,水受热蒸发产生的蒸汽),但对烟气的特性没有影响。有机材料中常存在其他元素,如氮、硫和卤素,这增加了燃烧产物中的气体类型。然而,只有在非常特殊的条件下,这些元素才会改变烟气的颜色。当其含量高于正常值时,会产生强烈的气味。这种现象在工业火灾中可能遇到,但很少出现在住宅火灾中。


The color of smoke is almost entirely determined by the character and type of fuel and the availability of oxygen for complete combustion. Most materials, including all hydrocarbons, will never burn completely even in the presence of excess air, without premixing of the fuel with air. This is true of natural gas when burning in large volumes.

烟气的颜色几乎完全由可燃物性质、类型以及氧气供给情况决定。包括所有碳氢化合物在内的大多数材料,如果未与空气预混,即使在空气供给过量的情况下也不会发生完全燃烧。大量天然气燃烧时也是如此。


As the hydrocarbon molecules become larger, such as those in petroleum oils, more air is required, and it becomes more difficult to completely mix the fuel with air. Thus, in an ordinary fire, materials such as petroleum distillates tend to produce a large quantity of dense black smoke. Therefore, the presence of much black smoke may indicate the burning of a highly carbonaceous material like the petroleum products sometimes used as accelerants. Dense black smoke, however, is usually more indicative of the amount of ventilation and the stage of development at which the fire is burning. For example, fire burning in a restricted space without adequate and complete ventilation will always form more smoke and darker smoke than when the same fire is well ventilated.

随着碳氢化合物分子增大,比如石油中的分子,其燃烧需要更多的空气,且可燃物与空气完全混合难度变得更大。因此,一般火灾中,石油馏出物等材料往往产生大量的浓密黑烟(见图1)。因此,出现大量黑烟的现象可能表明燃烧过程中存在含碳量较高的材料,如有时作为助燃剂的石油产品。然而,浓密的黑烟通常更能反映通风状况以及火灾所处的发展阶段。例如,相较于通风良好的火灾,受限空间通风不足,燃烧经常会产生更多颜色更深的烟气。


图1 油品燃烧产生大量黑烟


The early stages of a developing structure fire may be dominated by the incomplete combustion and partial pyrolysis of fuels present. These products of incomplete combustion are often characterized by dense clouds of dark smoke that form until flashover occurs, windows break, and the flammable vapors freely combust. At this point, the smoke becomes a lighter color and less opaque, sometimes almost transparent. If the initial fuel is cellulosic, the smoke will be light colored from the outset due to the release of water vapor and absence of soot.

建筑火灾发展初期以可燃物的不完全燃烧和部分热解为主。不完全燃烧产物通常以形成浓密的黑色烟气层为特征,这种情况会一直持续到轰燃(flashover,室内火灾所有可燃物表面同时起火的现象)发生、窗口破坏以及易燃蒸气开始自由燃烧。此时,烟气颜色开始变得更浅、更透明,有时几乎完全透明。如果最初可燃物为纤维素材料,由于其燃烧产生水蒸汽且没有烟炱,烟气从一开始就是浅颜色的。


Oxygenated organic materials, such as cellulosics, burning freely in the presence of air often produce little or no colored smoke. Alcohols, for example, are in this category. If used as accelerants, they will not be detected by observing the smoke. The same is true of wood and most cellulosic building materials that produce either a white or light gray smoke, except when the supply of air is greatly restricted. Even under these circumstances, they will not produce the heavy black smoke that follows the burning of heavier hydrocarbons. Asphalt-like materials, also common in building construction, and materials such as tar paper, some paints, sponge rubber upholstery, adhesives, sealing compounds, and most floor coverings will generally produce a black smoke. These are more likely to burn late in a fire, so that the production of heavy black smoke late in a fire is not ordinarily an indication of the use of accelerant. Many plastics, especially polystyrenes and polyurethane, produce thick black smoke when burned in large quantities in air.

含氧有机材料,如纤维素,在空气中自由燃烧通常产生淡淡的或无色的烟气。例如酒精就属于这类物质。如果使用酒精作为助燃剂,将无法通过观察烟气来探测其着火。木材和多数纤维素建筑材料也是如此,除非空气供给受到极大限制,否则燃烧时也会产生白色或浅灰色烟气(见图2)。即使在空气供给受限的情况下,这类材料也不会像重质碳氢化合物燃烧那样产生浓密的黑烟。建筑施工中常见的沥青类材料燃烧时通常产生黑烟,如油毡、油漆、海绵橡胶装饰、粘合剂、密封胶和多数地板装饰物等。这些可燃物更有可能在火灾后期发生燃烧,因此,火灾发展后期产生浓密黑烟往往并不表明使用了助燃剂。许多塑料,特别是聚苯乙烯和聚氨酯,在空气中大量燃烧时也会产生厚厚的黑烟(见图3)。

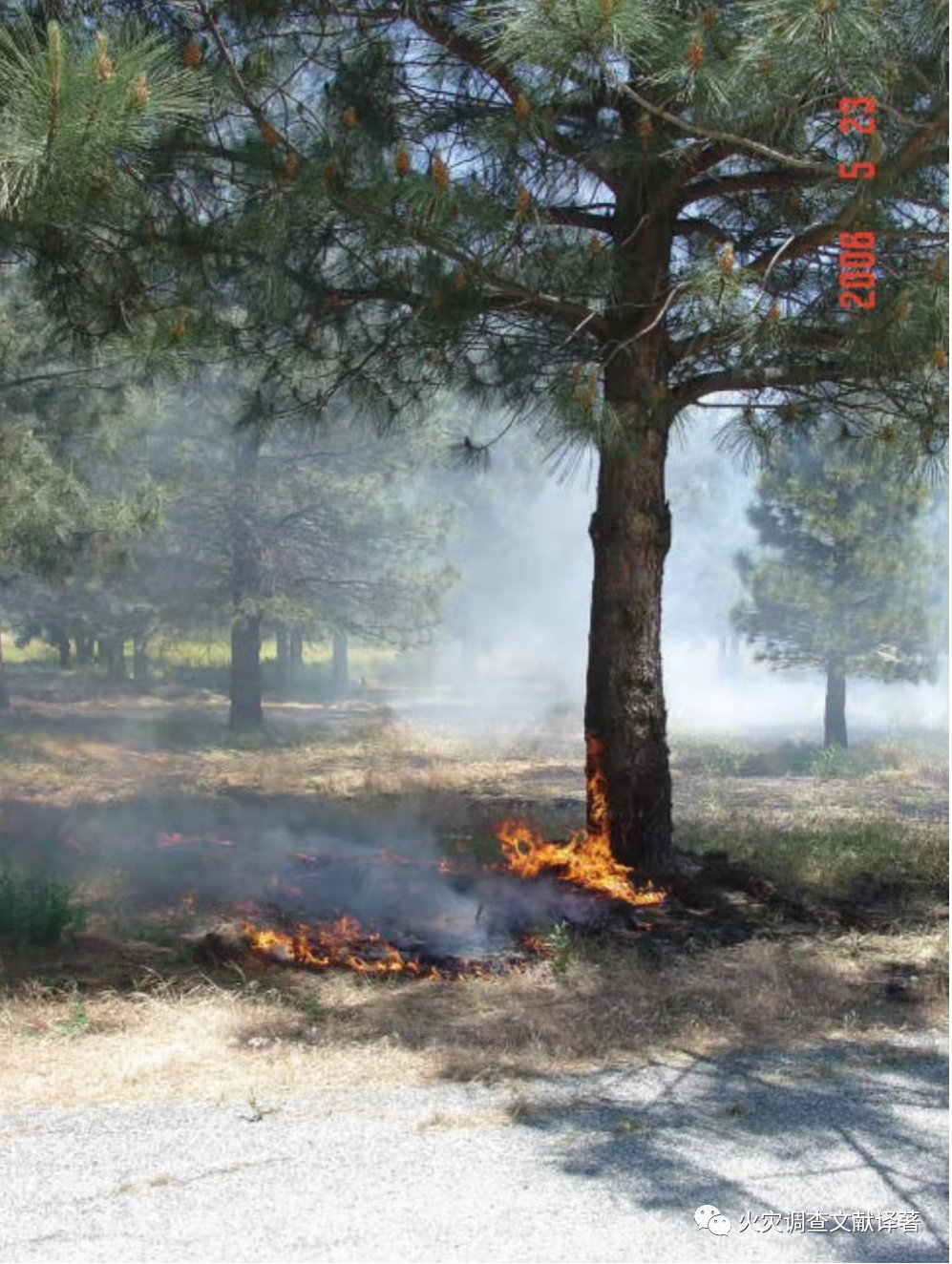

图2 植物燃烧产生灰白色的烟气


图3 塑料泡沫燃烧产生黑色烟气和熔融滴落物


The optical density of smoke produced during oxygen-depletion calorimetry is measured by a standardized light-path method in the exhaust duct. The value obtained can be used to predict the visibility factors that affect tenability and escape paths for people in the fire room. Once again, if comparison samples of suspected fuels are available, tests can be conducted to assess their contributions.

在基于耗氧原理(大多数材料燃烧消耗1kg氧气释放13.1MJ能量)的量热仪试验中,烟气光学密度是采用标准光路法测量排烟管道中的烟气得到的。光学密度值可用于预测能见度,该参数影响火场中人员耐受能力和逃生路径。同样,如果有疑似燃料的比较样本,可以通过试验评估其对火灾的影响。

译者注:碳氢化合物燃烧易产生黑烟。如果分子中含有氧元素,燃烧时烟气颜色相对较浅。但也不能完全依靠烟气的颜色判断可燃物类型,因为烟气颜色还与氧气的供给情况有关。例如,通风良好的条件下木材燃烧产生的烟气颜色较浅,但同种木材在空气不足的情况下燃烧也会产生黑烟。

此外,浅色的烟气也可能是可燃物分解出来的未燃气体,如阴燃时产生的烟气(见图4)。阴燃(smoldering)是某些固体物质无可见光的缓慢燃烧,主要发生在空气不流通的情况下。阴燃时可燃物分解后残留的炭发生表面燃烧,分解出来的可燃气体形成浅色的烟气,由于没有发生气相燃烧,因此不产生火焰。


图4 沙发垫阴燃产生白色的烟气


当密闭空间发生火灾氧气不足时,燃烧熄灭,由于温度较高,可燃物仍会继续热解,这种情况下产生的烟气颜色也较浅。此时若将密闭房间打开,可能会在开口处发生回燃(backdraft) 见图5。


图5 回燃试验
